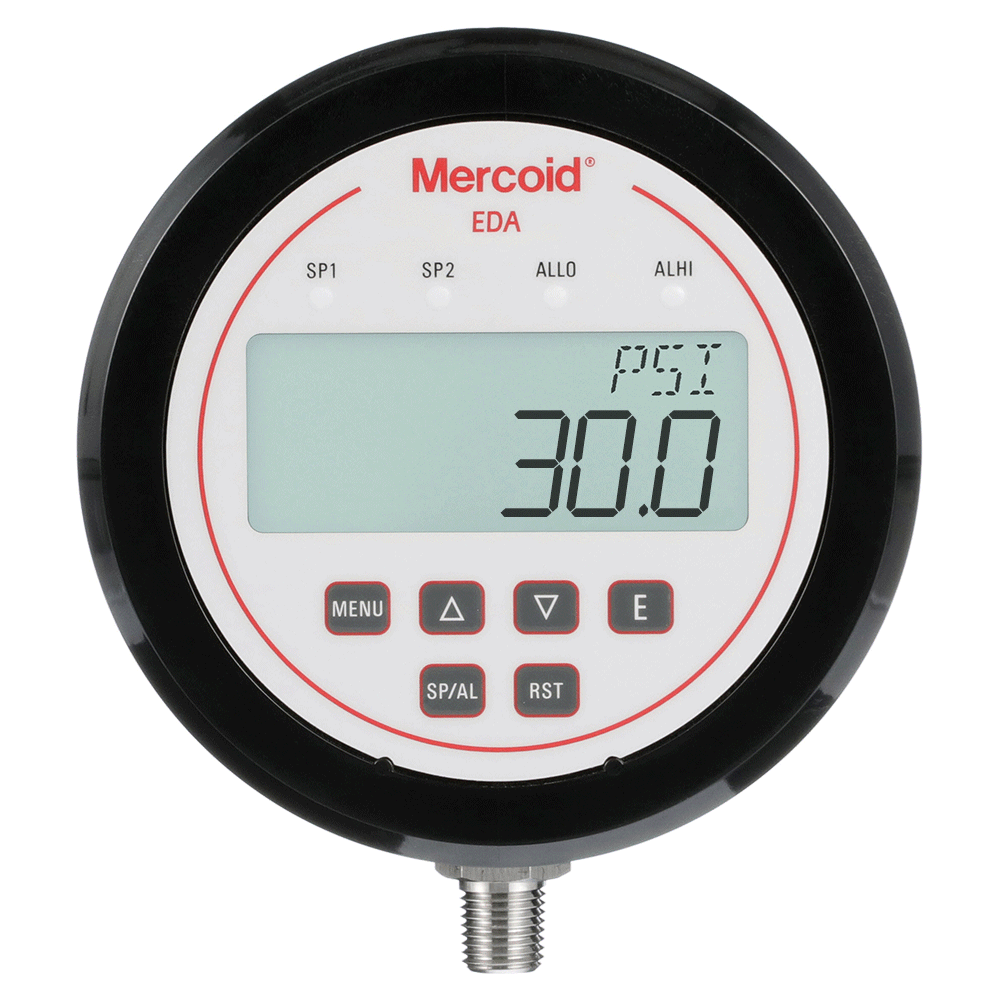

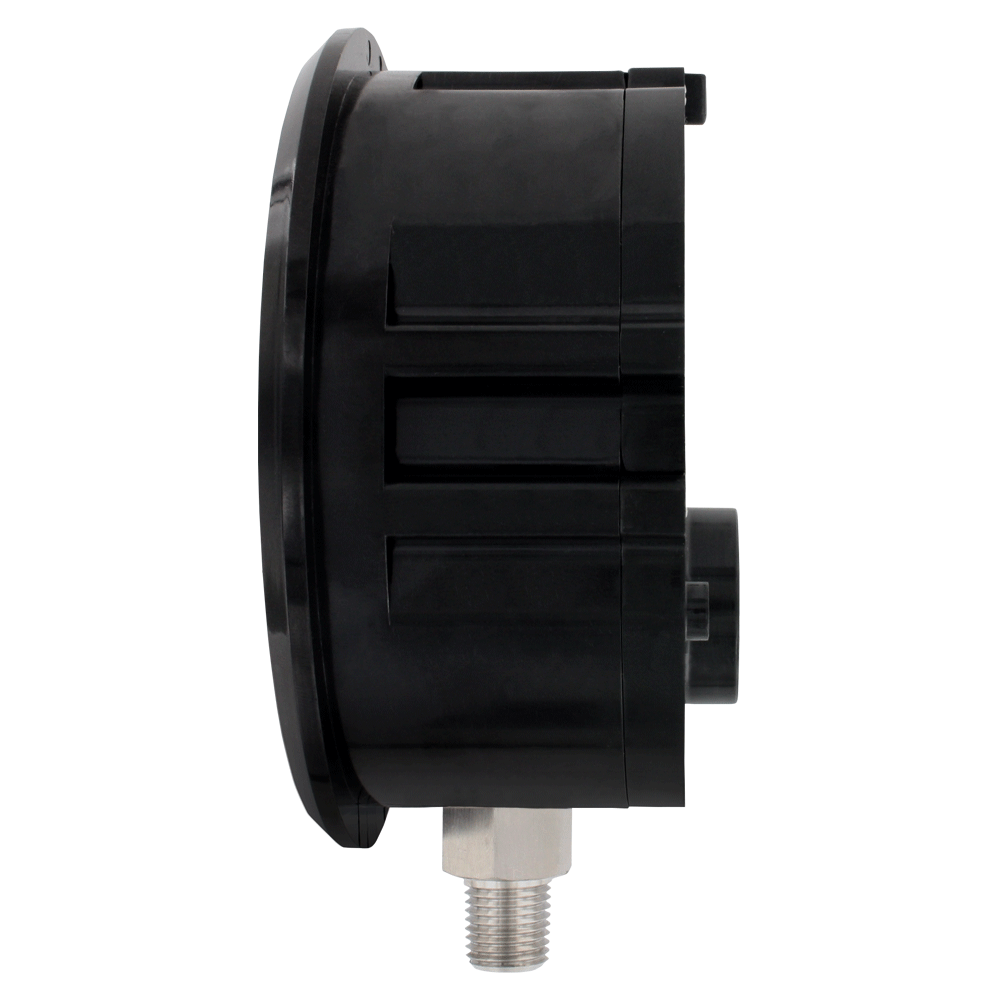

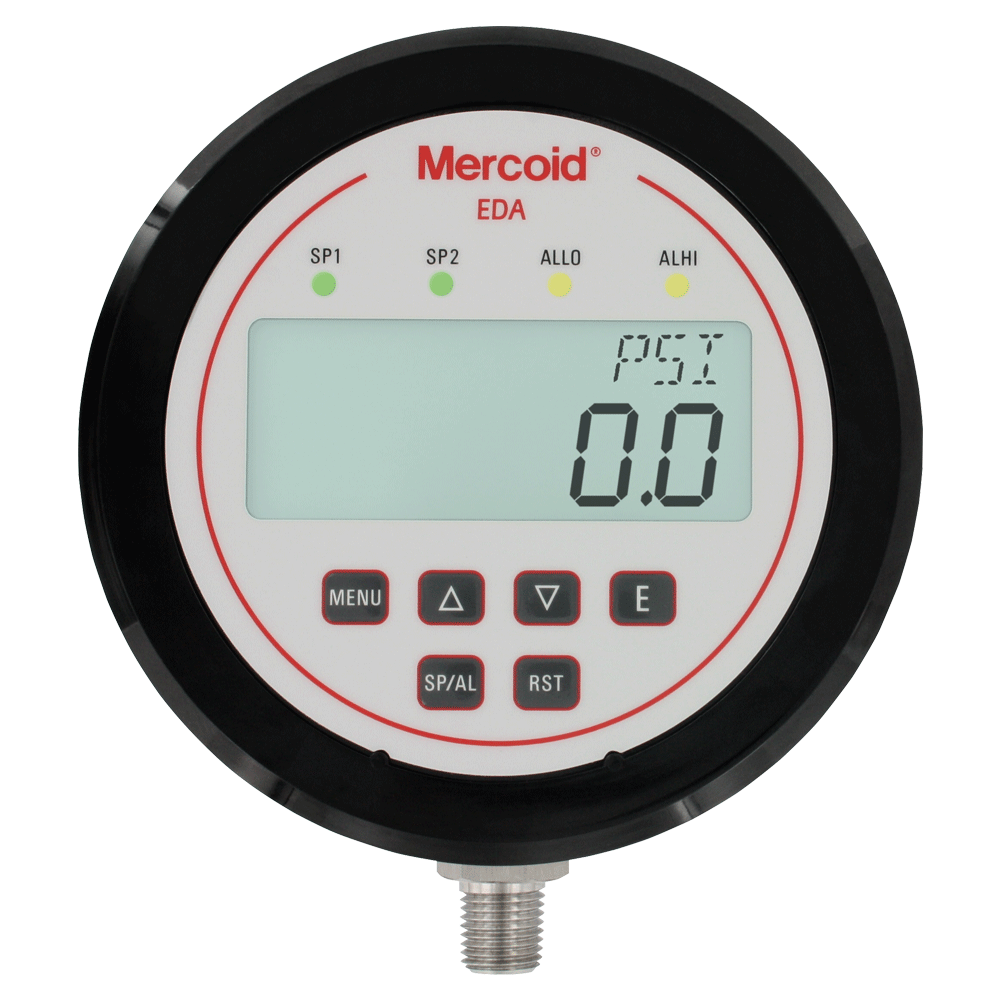

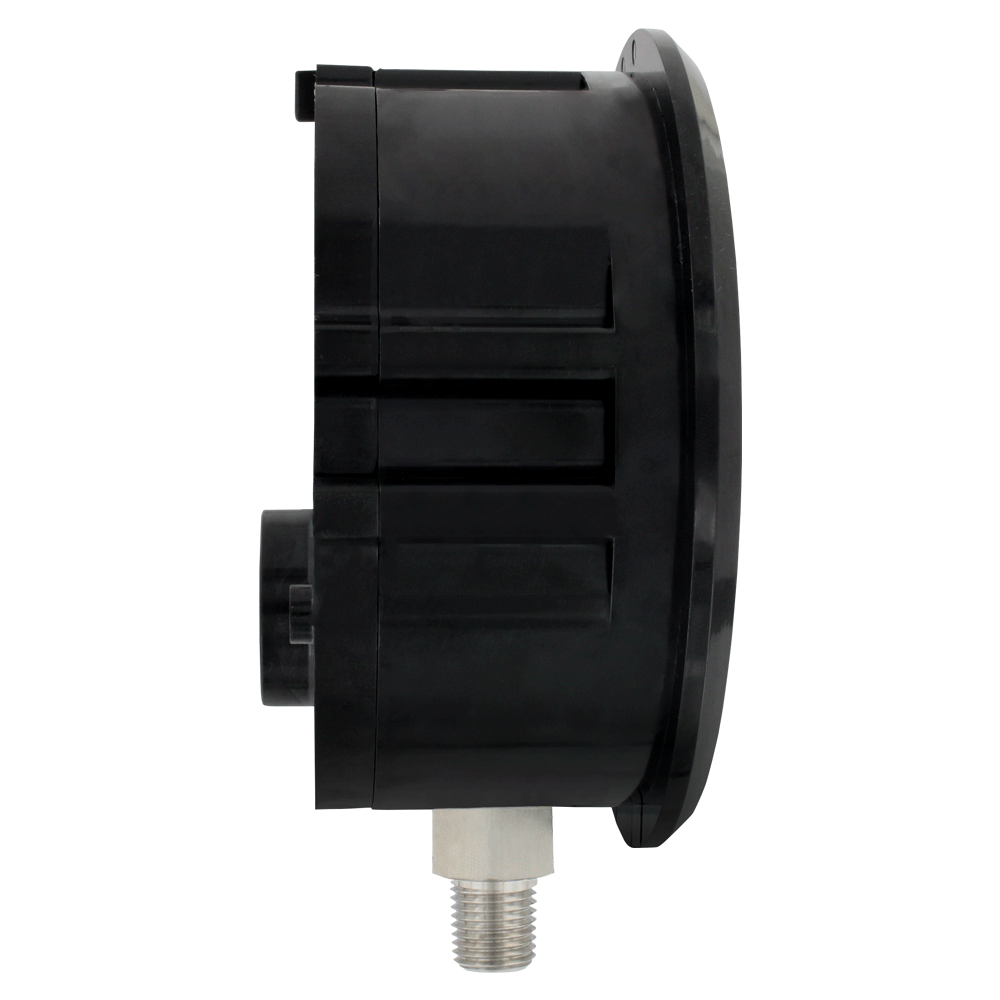

2 Switches, Indicating Gage, and Transmitter in One Package
EDA系列電子壓力控制是一種非常通用的緊湊封裝，可以在一個系統中取代一個單獨的壓力表，兩個開關，和一個變送器，節省資金，安裝時間，和面板空間。EDA集成了兩個SPDT繼電器，在控制或報警使用的范圍內，開關點完全可調。正面有LED指示燈的開關狀態和一個大背光兩線顯示過程值和指示單位。簡單的菜單結構，兩行顯示和外部編程按鈕，編程容易。耐風雨外殼是各種應用的理想選擇，具有面板安裝，沖洗安裝，或管道安裝能力。功能包括零點設置，可調衰減，菜單鎖定，峰值和山谷指示，可移動終端塊，可調時間延遲，可縮放發射機輸出。
應用及案例
● Process control
● Compressor control
● Filter status
● Duct or building static pressure
● Damper and fan control
產品特色
● Display Units: psi, kg/cm?, bar, in Hg, ft w.c., kPa, MPa, %FS, in w.c., mbar, cm w.c., mm Hg, or oz/in? (choices depend on range).
● Test Mode: Simulates input over the range without pressuring to easily test switches and transmitter output feature.
● Fail-safe: For sensor failure, over pressure, high temperature limit, low temperature limit, or keypad short. User chooses if relay is de-energized, energized, or no action. With transmitter option, user chooses an output of 3.6 mA 22 mA, or no action.
● Alternation: Selectable alternation of set points between the relays for even wear on duplex pump applications.
● Versatile Compact Package: Can replace a separate gage, two switches, and a transmitter in a system saving, money, installation time, and panel space.
● Fully Programmable: To meet simple or complex application needs.
● Weatherproof Housing: Ideal for a wide variety of applications with panel mount, flush mount, or pipe mount ability.
